In the Mediterranean & tropical regions it is quite feasible to construct an intelligent house with the 25 cm Styrostone without an external energy source for heating . However, that is of course not enough for colder places like Great Britain or Ireland.For the very cold climate, more insulation in the walls is necessary and for that reason Styro Stone has developed the Super RR (35 cm with Neopor) that has an U-value of 0.14. However, in some cases, even that is not enough
The problem to solve was the difficulty in the handling of Styro Stones with a breadth of more than 35 cm. The castellations of the styro stones have to fit tightly. The wider the insulation layer, the more difficult it becomes to lay the Styro Stones, demanding increased force to connect the following courses.
The VIB-Stone permits any choice of insulation breadth:
* without violating the quality-standards for tight fitting castellationsThe VIB-Stone gives you any range of insulation breadth within a 50 mm grid, theoretically indefinately. By staggering the additional insulation, we facilitate tight fitting castellations and ensure all elements to be in uniform alignment.* without increased efforts to lay the larger stones
In this image, taken from a site in Denmark, we illustrate the configuration of VIB stones and standard elements to achieve a 450mm wall structure

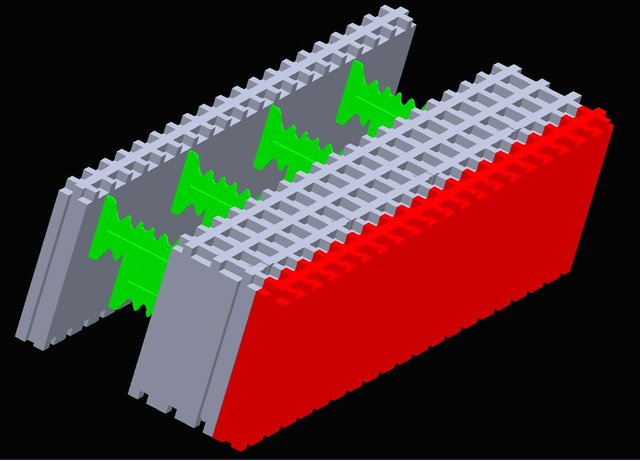

1. Layer
the Super RR is added with a 5 cm VIB-board

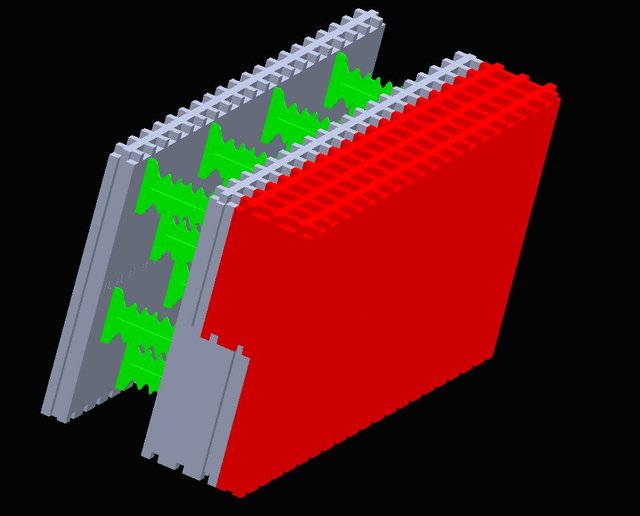

2. Layer
the 25 Stone is added with a 15 cm VIB-board

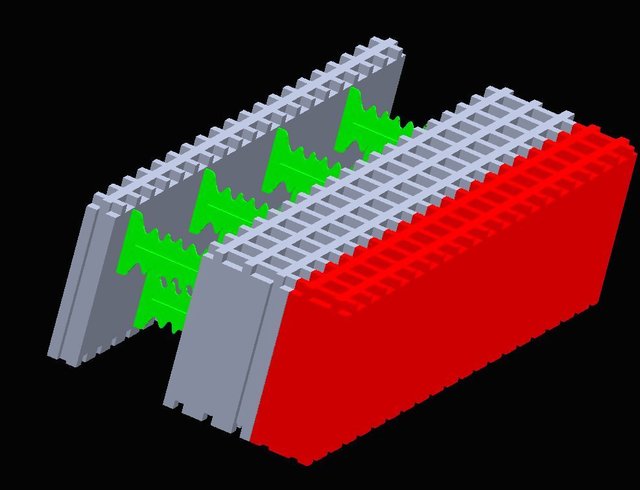

1. Layer
the Super RR is added with a 10 cm VIB-board.
2. Layer
the 25 Stone is added with a 5cm VIB-board and a 15cm VIB-board

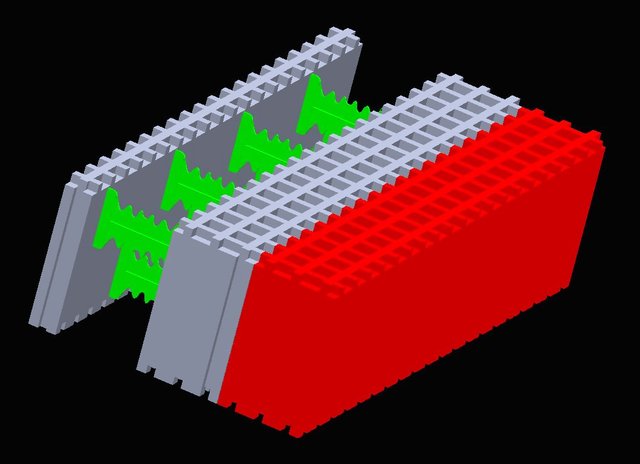

1. Layer
the Super RR is added with a 15cm VIB-board

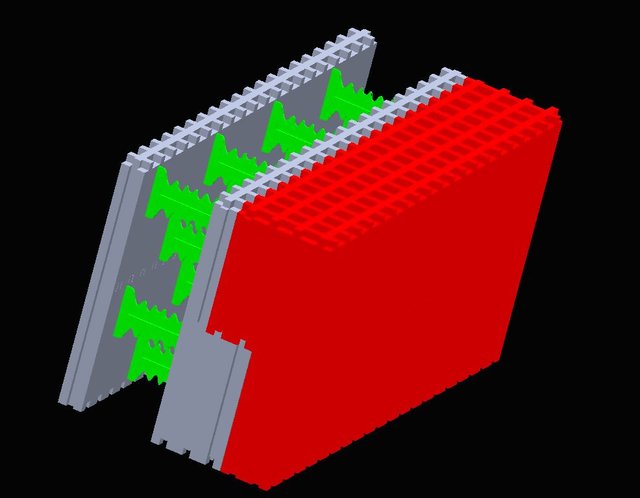

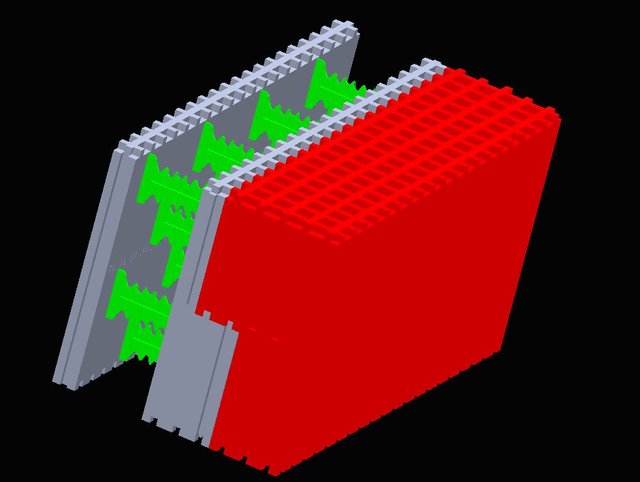

2. Layer
the 25 Stone is added with a 15cm VIB and a 10 cm VIB-board

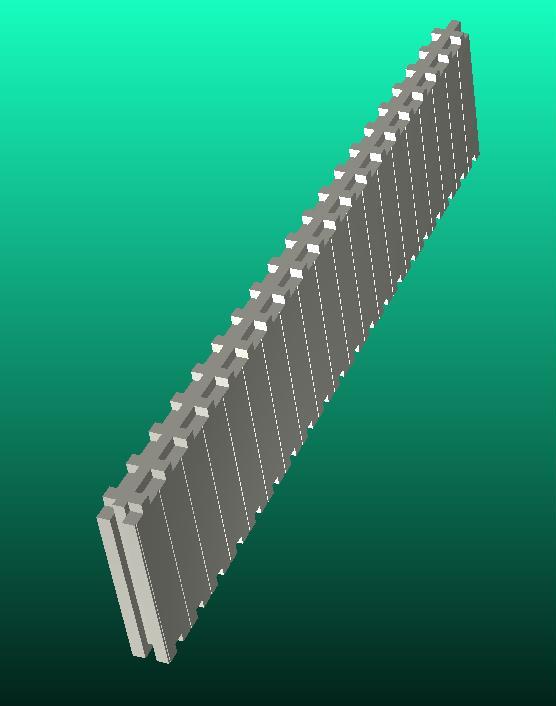

5cm breadth

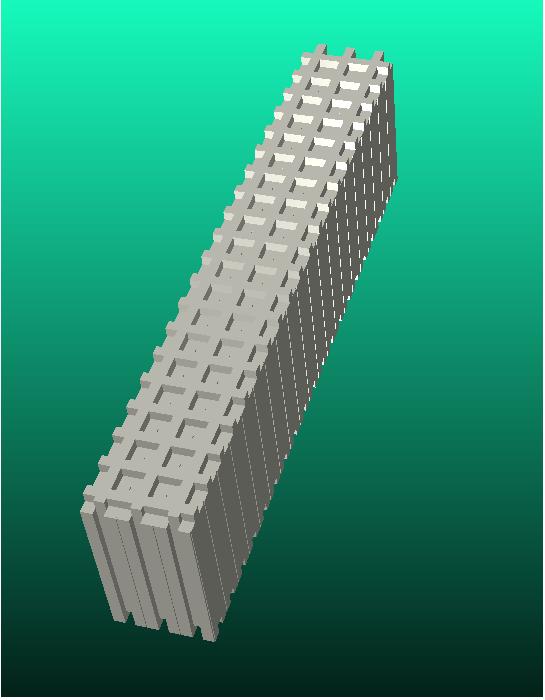

15cm breadth
